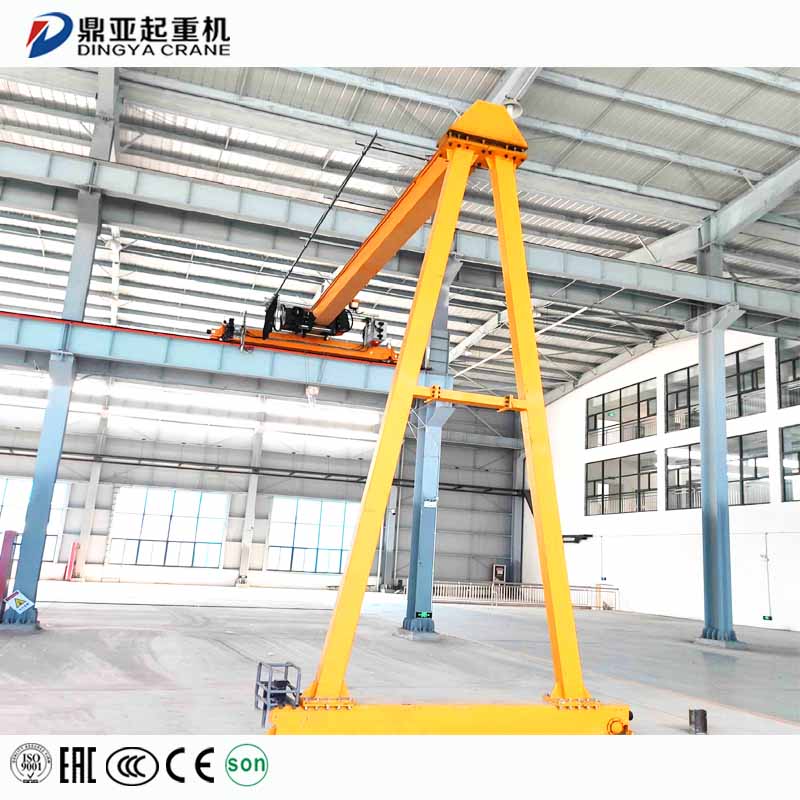

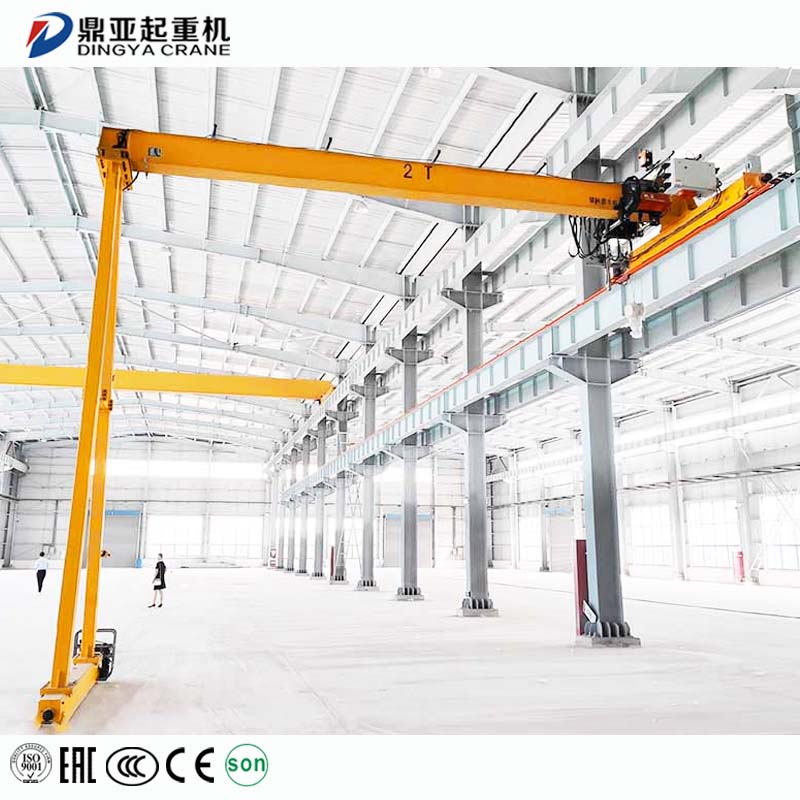

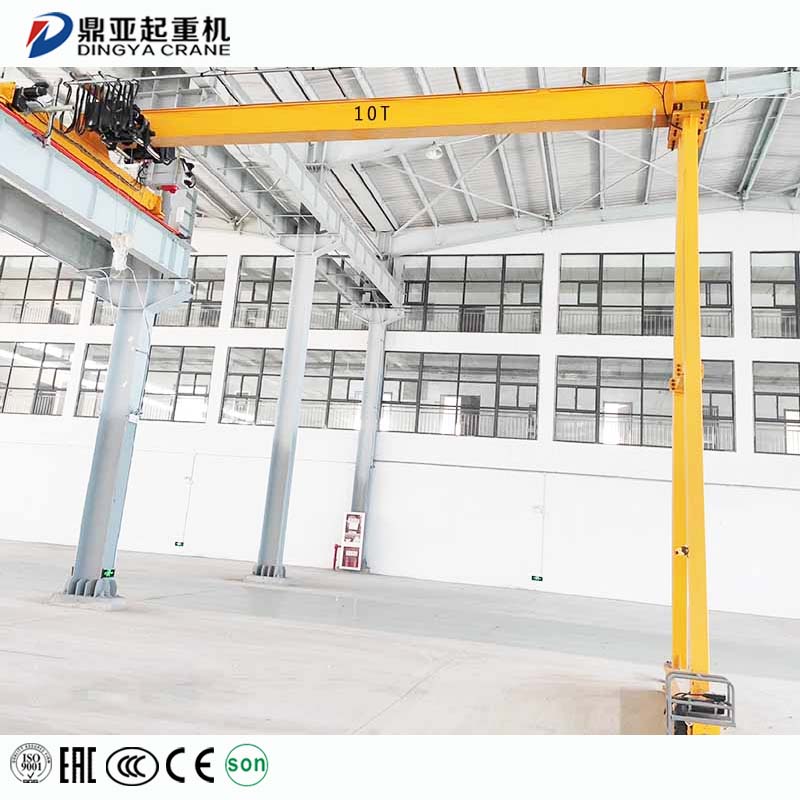

DINGYA Semi Gantry cranes range from 1T to 32T capacity with a height of lift up to 20 meters and span up to 30 meters. We offer both single girder and double girder as per customer requirements.
Capacity :
1-32tonSpan :
up to 30mLifting Height :
up to 20mPower Supply :
380v/50hz/3phase ( customized)Work Duty Grade :
A3-A6Traveling Speed :
0-40m/minLifting Speed :
5/0.83 m/minSemi Gantry Crane
Designs of DINGYA semi gantry crane
Gantry cranes are often used when the rail system for overhead cranes is difficult or cost-prohibitive to install. Dingya Crane focuses on the strength and stability of the crane. In order to adapt to various working conditions of customers' factory, the gantry crane is designed as Full gantry and Semi gantry. The full gantry crane is a double rail on the ground, while the semi-gantry crane is a single rail on the ground + a single rail on the upper runway. A gantry crane is easier to move to a new location than an overhead crane, and its runway can be easily changed.
DINGYA pays special attention to outdoor gantry applications to ensure excellent stability when wind, self-weight and other stress factors are involved.
Advantages of DINGYA semi gantry crane
♦Guide roller for rectifying wheel deviation
♦Flat wheel, ground safety for logistic
♦Motor protective cover to protect the motor safety
♦Available with differing speeds for travel and hoist motion
