The bridge crane can be designed to span different distances according to the needs and cover a wide range. Its bridge structure can provide enough support to enable it to operate in large spans.
Capacity :
3.2-200tonSpan :
3-50mLifting Height :
6-50mPower Supply :
380V/50hz/3phase（customized）Work Duty Grade :
A3-A7Traveling Speed :
0-40m/minLifting Speed :
10/1.8m/minsingle beam overhead crane

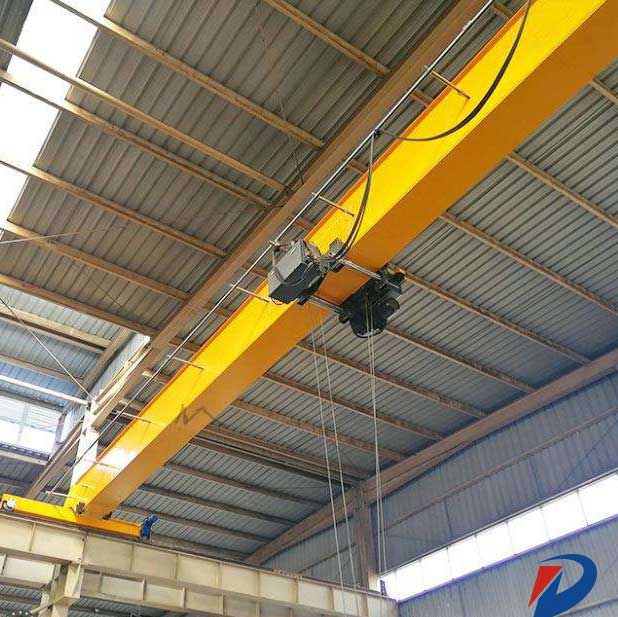

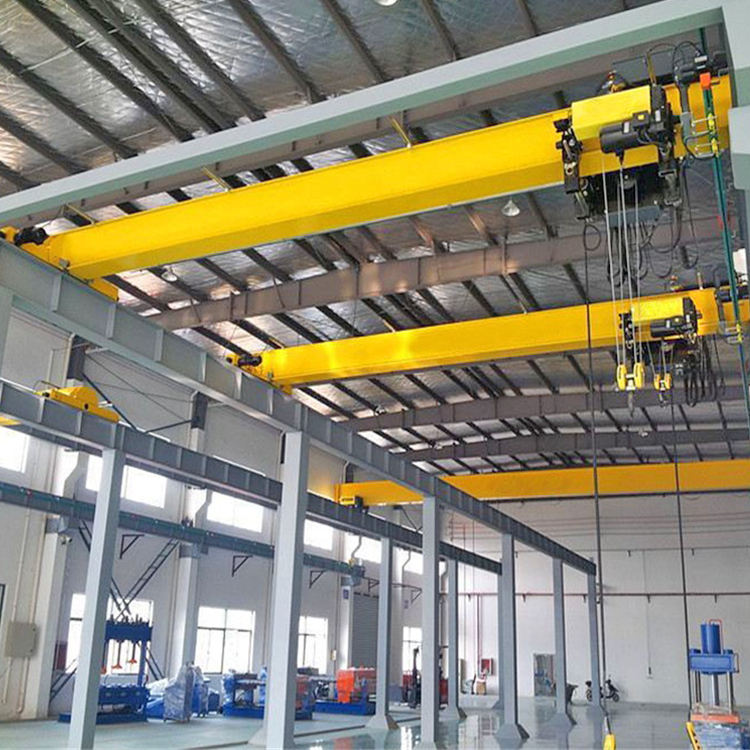

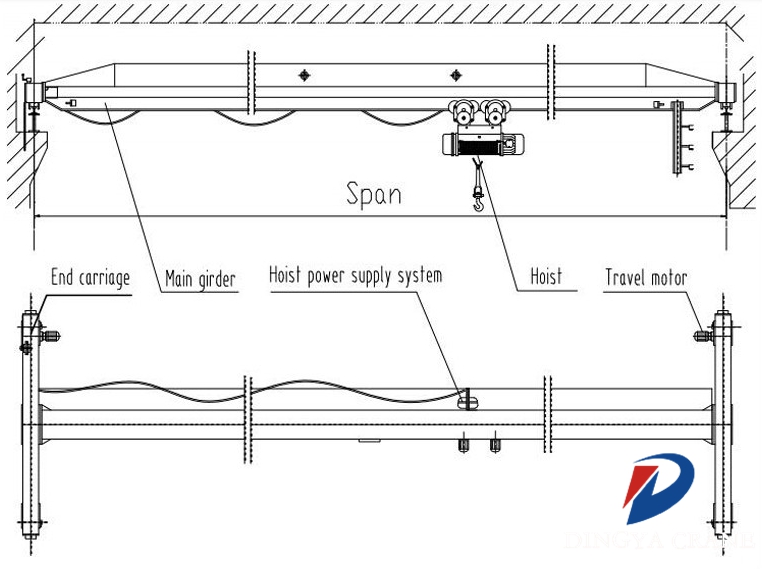

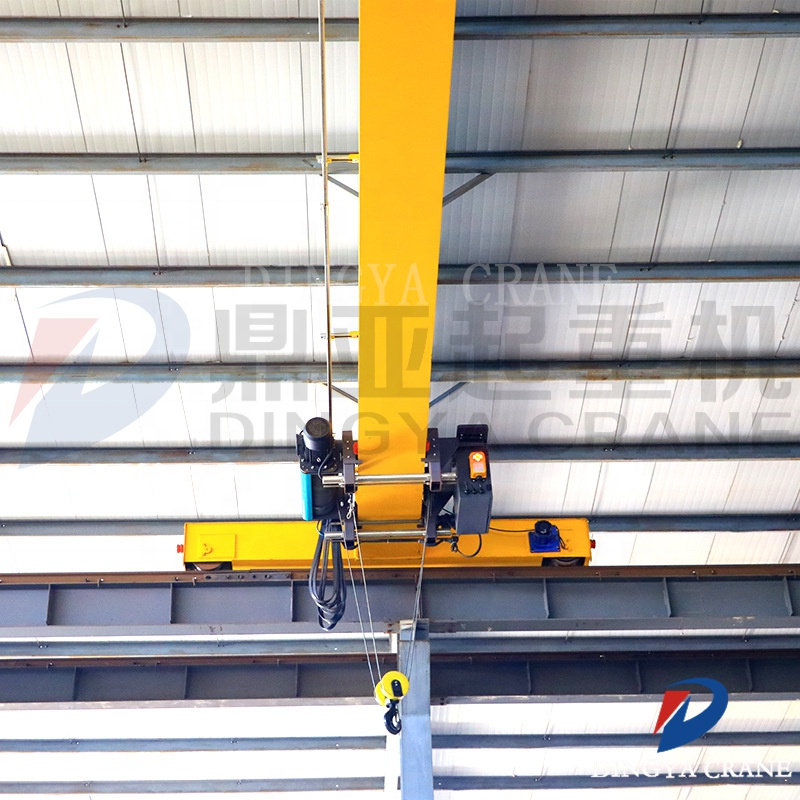

1.The single girder overhead crane is a kind of crane with the bridge on the elevated track. The bridge frame runs longitudinally along the track laid on both sides of the elevated frame, and the crane trolley runs horizontally along the track laid on the bridge frame to form a rectangular working area, which can make full use of the space under the bridge frame to lift materials.

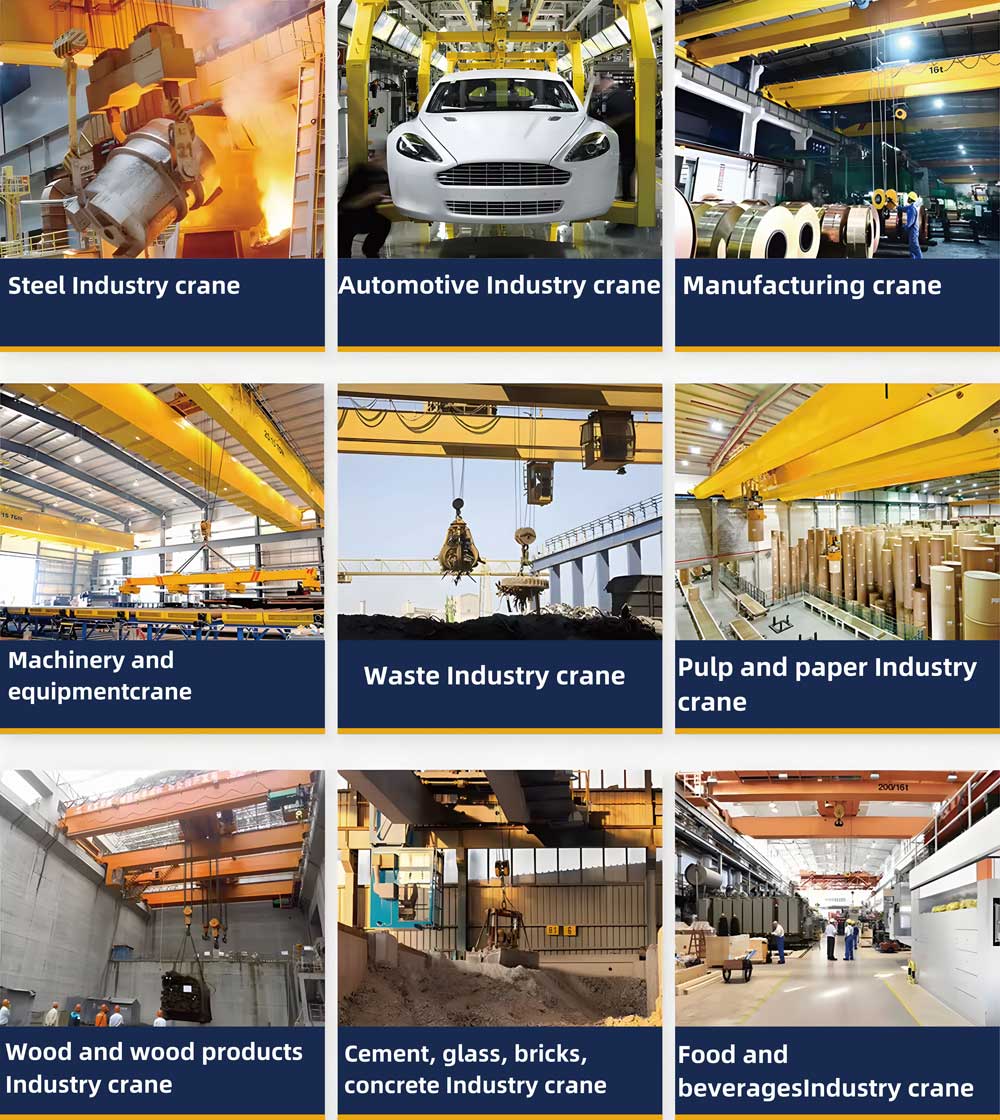

2. This eot crane is widely used in machinery manufacturing, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries on-site construction operations, and material handling operations in workshops and warehouses, and are especially suitable for industrial construction operations and equipment hoisting in large factories.
|

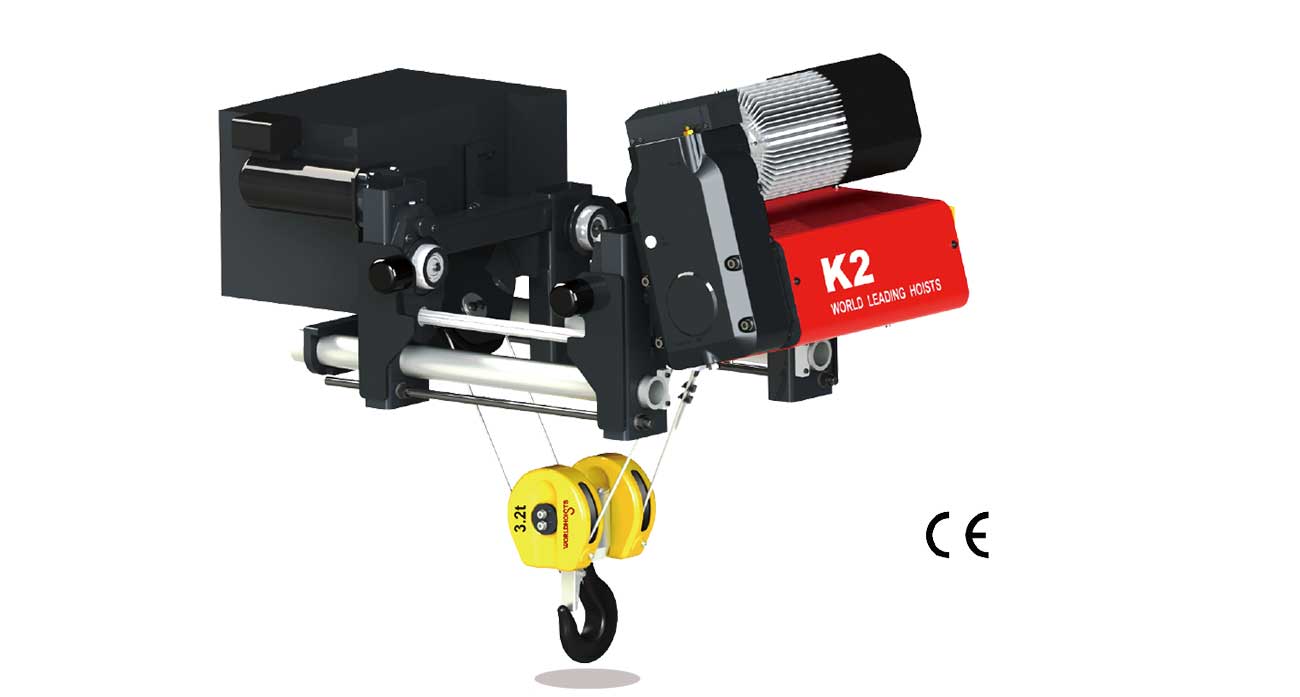

Wire Rope Hoist： Frequency-controlled electric wire rope hoists allow for smooth lifting and operation, and the excellent design allows for both intensive use and reliability. The variable width design of the trolley can be adapted to different beam widths. |
 |
|

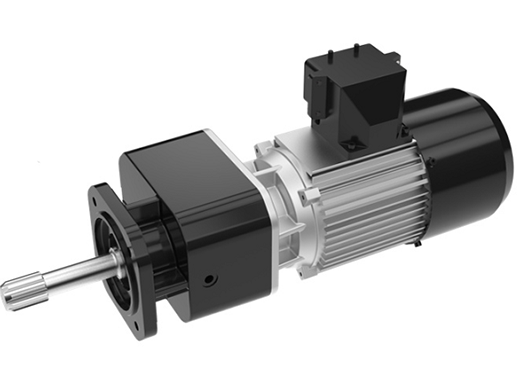

Motor & Reducer： Motor and reducer allow for lighter weight and smaller dimensions, while delivering powerful power. |
 |
|

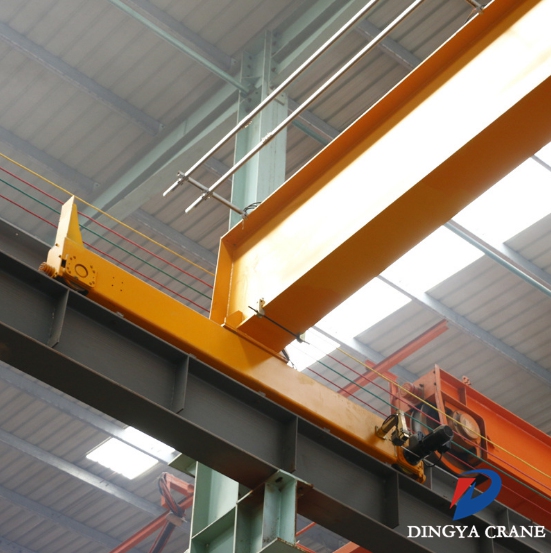

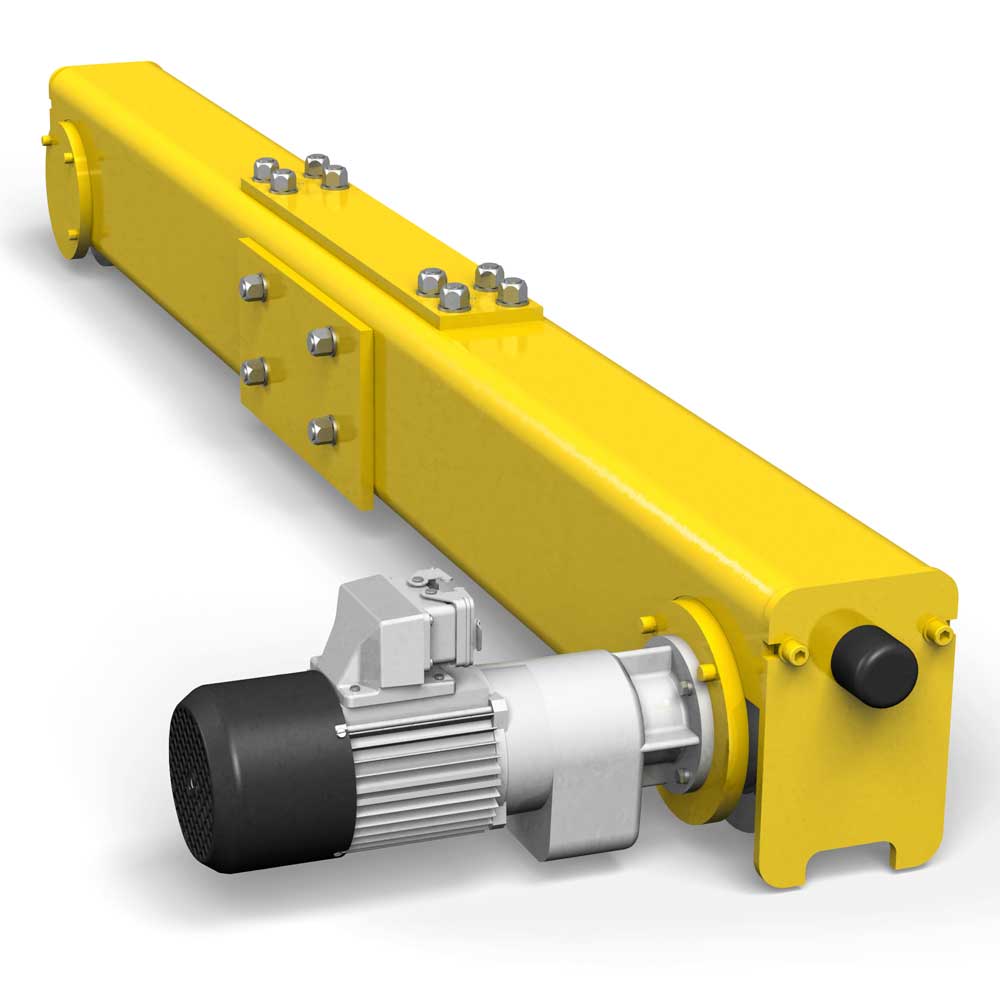

End Carriage & Wheel： Forged wheelsets can be adapted to a variety of operating environments, with customized wheels for different tracks.
|
 |
Hook：Capacity: 1-450t.Type: Single hook, double hooks.Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath. |
 |

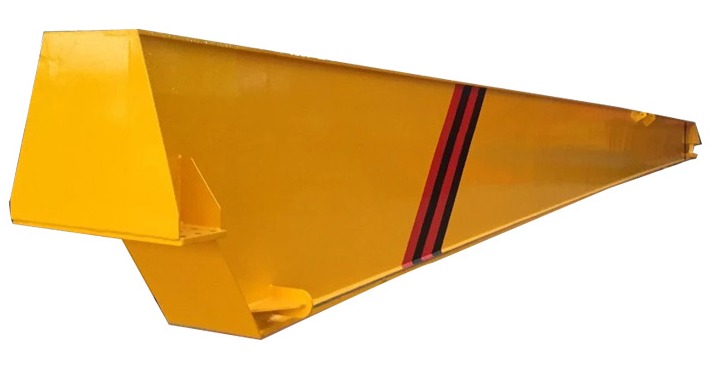

Main BeamIt employs bias-rail box-type structure ,connects eith end beam by high-strength,bolt ensuringeasy transportation. |
 |
Euro type single beam overhead bridge crane are widely used in workshop for heavy goods lifting. All of our crane are fabriacted according to FEM/ISO standard, the most feature of the craen are maintenance- free and very low faliure.
